Creating Web services using Apache CXF (Part 2): Development

We need to set-up the project  environment first. Please download the following JARs.

Versions Used :

CXF 2.2.2           Download Link : CXF Site Download Link

Spring 2.5.6       Download Link : SpringSource Download site

The following jars are required for all CXF usage: But you will be getting it through CXF Download.
- cxf.jar
- commons-logging.jar
- geronimo-activation.jar (Or the Sun equivalent) [6]
- geronimo-annotation.jar (Or the Sun equivalent) [6]
- geronimo-javamail.jar (Or the Sun equivalent) [6]
- geronimo-stax-api.jar (Or the Sun equivalent) [6]
- neethi.jar
- jaxb-api.jar  [6]
- jaxb-impl.jar
- XmlSchema.jar
- wstx-asl.jar  [6]
- wsdl4j.jar

The following jars are required for XML catalog support:
- xml-resolver.jar

For Java2WSDL and WSDL2Java:
- The above jars
- jaxb-xjc.jar
- velocity.jar
- commons-collections.jar
- commons-lang.jar

For JAX-WS support:
- geronimo-ws-metadata.jar [6]
- geronimo-jaxws_2.1_spec-1.0.jar (Or the Sun equivalent) [6]
- saaj-api.jar [6]
- saaj-impl.jar [6]
- asm.jar (semi-optional, helps with performance of wrapper types and is
        required when adding JAXB annotations onto the SEI methods and
    parameters.)

For XML Configuration support:
- aopalliance.jar
- spring-beans.jar
- spring-context.jar
- spring-core.jar
- spring.web.jar
- FastInfoset.jar

For standalone HTTP support:
- geronimo-servlet.jar
- jetty.jar
- jetty-util.jar
- sl4j.jar & sl4j-jdk14.jar (optional – but improves logging)
For Aegis support:
- jdom.jar (optional, if you want to map xsd:anyType to JDOM)

For WS-Security support:
- bcprov-jdk15.jar
- xalan.jar
- serializer.jar
- wss4j.jar
- xmlsec.jar

For HTTP Binding support:
- jra.jar
- jettison.jar (Needed for JSON services only)

For JAX-RS support:
- abdera*
- axiom*
- jsr311-api.jar
- jettison.jar (Needed for JSON services only)

For JMS transport
- geronimo-jms.jar (Or the Sun equivalent)
- spring-jms.jar

For CORBA support:
- antlr.jar

If you want to use Aegis databinding which is providing by CXF then:

Download :jdom-1.0.jar

For Spring you can download its latest version say 2.5.

Step 2: Creating a Project

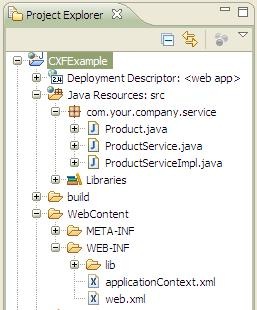

  • Open your IDE ( I am using Eclipse) and create a Web project. Lets say with Name CXFExample.

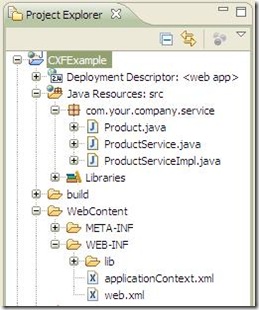

Project
  • Create a package say “com.your.company.service”
  • Create a POJO class with a name say “Product”. And include some properties like productName etc.
   1: package com.your.company.service;
   2:
   3: import org.apache.cxf.aegis.type.java5.IgnoreProperty;
   4:
   5: public final class Product {
   6:     private String itemName;
   7:     private String category;
   8:     private double price;
   9:     private String details;
  10:
  11:     public Product() {
  12:     }
  13:
  14:     public Product(String itemName, String category, double price,
  15:             String details) {
  16:         this.itemName = itemName;
  17:         this.category = category;
  18:         this.price = price;
  19:         this.details = details;
  20:     }
  21:
  22:     public String getItemName() {
  23:         return itemName;
  24:     }
  25:
  26:     public void setItemName(String itemName) {
  27:         this.itemName = itemName;
  28:     }
  29:
  30:     public String getCategory() {
  31:         return category;
  32:     }
  33:
  34:     public void setCategory(String category) {
  35:         this.category = category;
  36:     }
  37:
  38:     public double getPrice() {
  39:         return price;
  40:     }
  41:
  42:     public void setPrice(double price) {
  43:         this.price = price;
  44:     }
  45:
  46:     @IgnoreProperty
  47:     public String getDetails() {
  48:         return details;
  49:     }
  50:
  51:     public void setDetails(String details) {
  52:         this.details = details;
  53:     }
  54:
  55: }

Note that we used one Annotation from Aegis. Its just to get some idea about that annotation. As you know Aegis is using for data binding. As the annotation denotes if we are mentioning it is not needed in the WSDL file.

  • Creating the Service Interface
   1: package com.your.company.service;
   2:
   3: import java.util.List;
   4:
   5: import javax.jws.WebParam;
   6: import javax.jws.WebService;
   7:
   8: @WebService
   9: public interface ProductService {
  10:
  11:     List<Product> getProducts();
  12:
  13:     void addProduct(@WebParam(name = "product") Product product);
  14:
  15:     public void addProducts(@WebParam(name = "products") List<Product> products);
  16:
  17: }

Here we are using @WebService annotation and @WebParam Annotations. They are JAX-WS annotations.

@WebService is using to denote this Interface as the Web Service Interface. So while creating WSDL file this will consider.

@WebParam is using to name the Arguments in the WSDL file. Default it will be like Arg0, Arg1 etc. But if we are giving some names then that will be more identifiable in the WSDL.

  • Create the Service Implementation class
   1: package com.your.company.service;
   2:
   3: import java.util.ArrayList;
   4: import java.util.List;
   5:
   6: import javax.jws.WebParam;
   7: import javax.jws.WebService;
   8:
   9: @WebService(endpointInterface = "edu.web.service.ProductService")
  10: public final class ProductServiceImpl implements ProductService {
  11:
  12:     public List<Product> getProducts() {
  13:         List<Product> products = new ArrayList<Product>();
  14:         products.add(new Product("SpringInAction", "Manning", 200,
  15:                 "Book about Spring"));
  16:         products.add(new Product("EJB3InAction", "Manning", 200,
  17:                 "Book about EJB3"));
  18:         return products;
  19:     }
  20:
  21:     @Override
  22:     public void addProduct(Product product) {
  23:         System.out.println(product);
  24:     }
  25:
  26:     @Override
  27:     public void addProducts(@WebParam(name = "products") List<Product> products) {
  28:         for (Product product : products) {
  29:             System.out.println(product);
  30:         }
  31:     }
  32: }

Here we are writing the Impls of our Interface methods. @WebService annotation is marking this class as a web service implementation

In the next PART we will be discussing about the Configurations.
